Things to do:
Driver: The MicroPython “sdcard.py” driver: https://github.com/micropython/micropython-lib/blob/master/micropython/drivers/storage/sdcard/sdcard.py Get this and then put it into a directory called lib
Hardware.

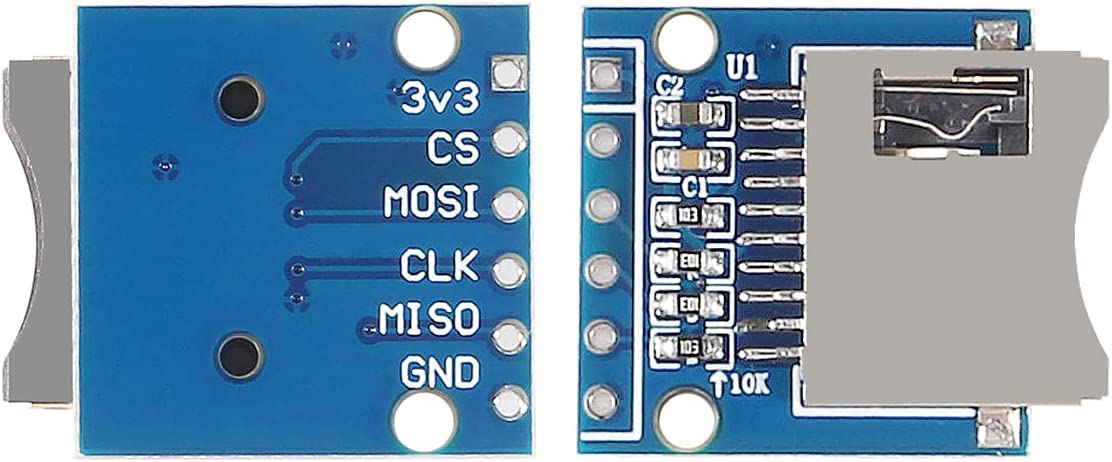

https://www.amazon.ca/dp/B0989SM146 A note here, the SD card is a 3.3V device. Many SD card adapter modules that you can buy are 5V and they have a voltage converter on board. There is no need for that here as the Pi Pico is 3.3V

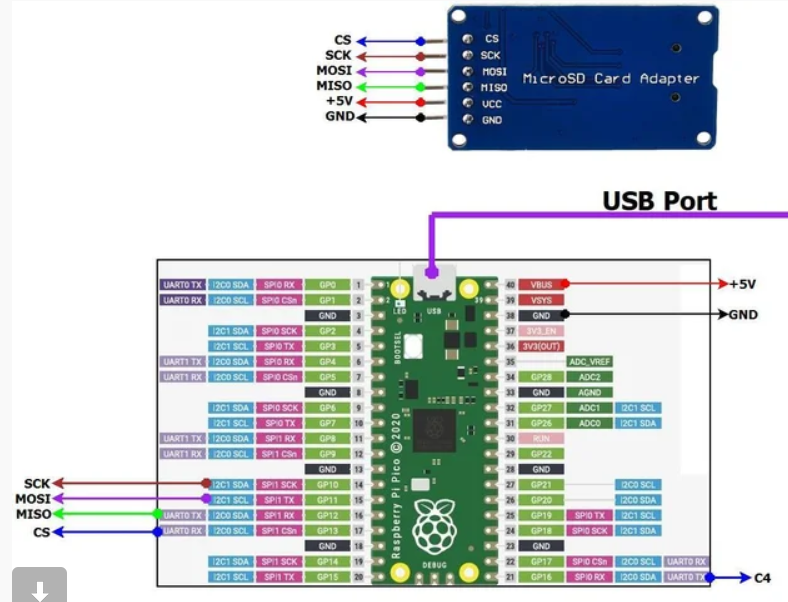

Connections for the SPI Bus

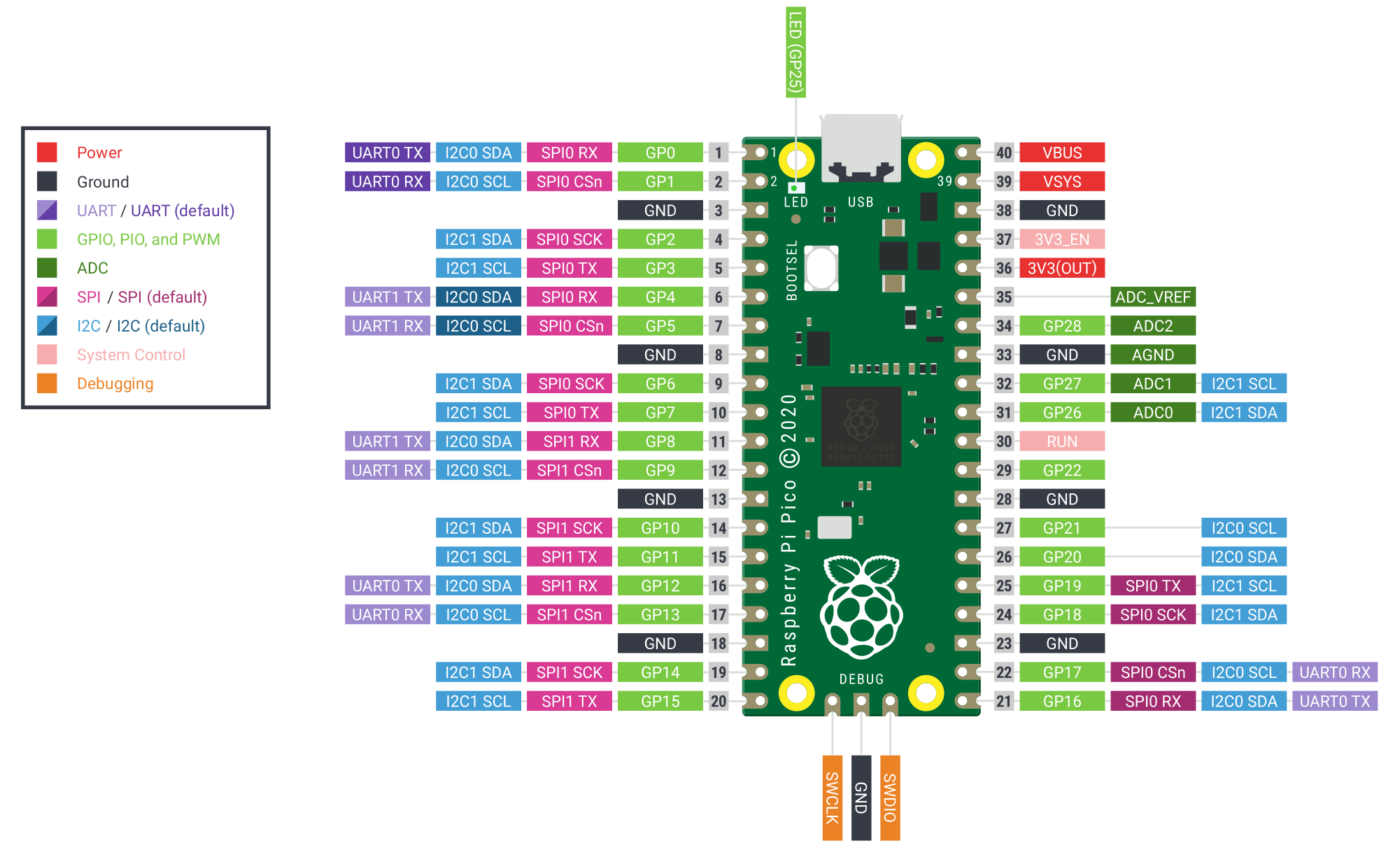

NOTE: The SD Card Adapter I used is a 3.3 Adapter and connects to the 3.3V out Pin 36
SPI Bus - Serial Peripheral Interface
SCK - Clock MOSI - Master out Slave in MISO - Master in Slave out CS - chip select The Pico is Master

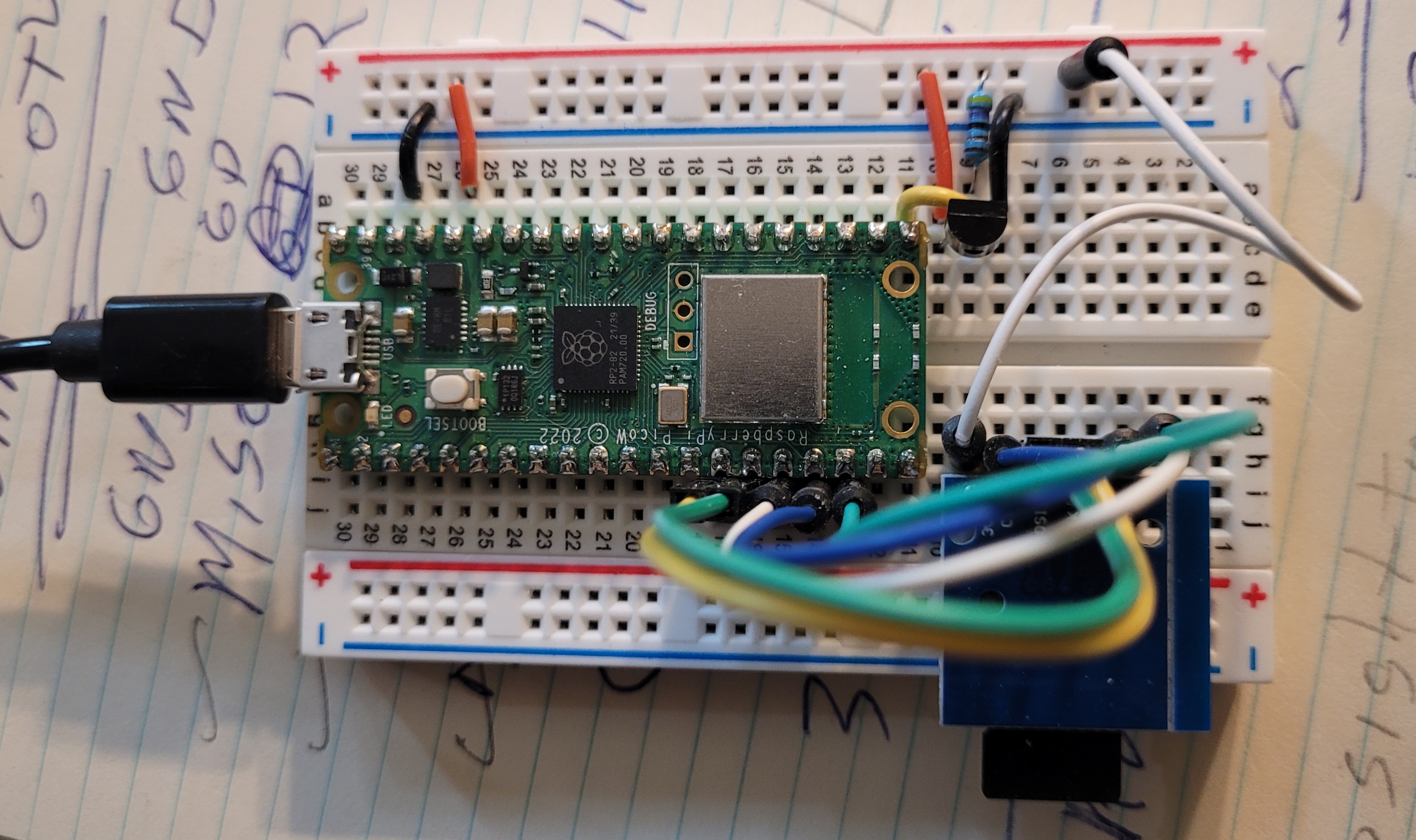

Getting the SD card adapter working is actually pretty easy. Include the driver and plug 4 signal pins and power and ground to the correct places.

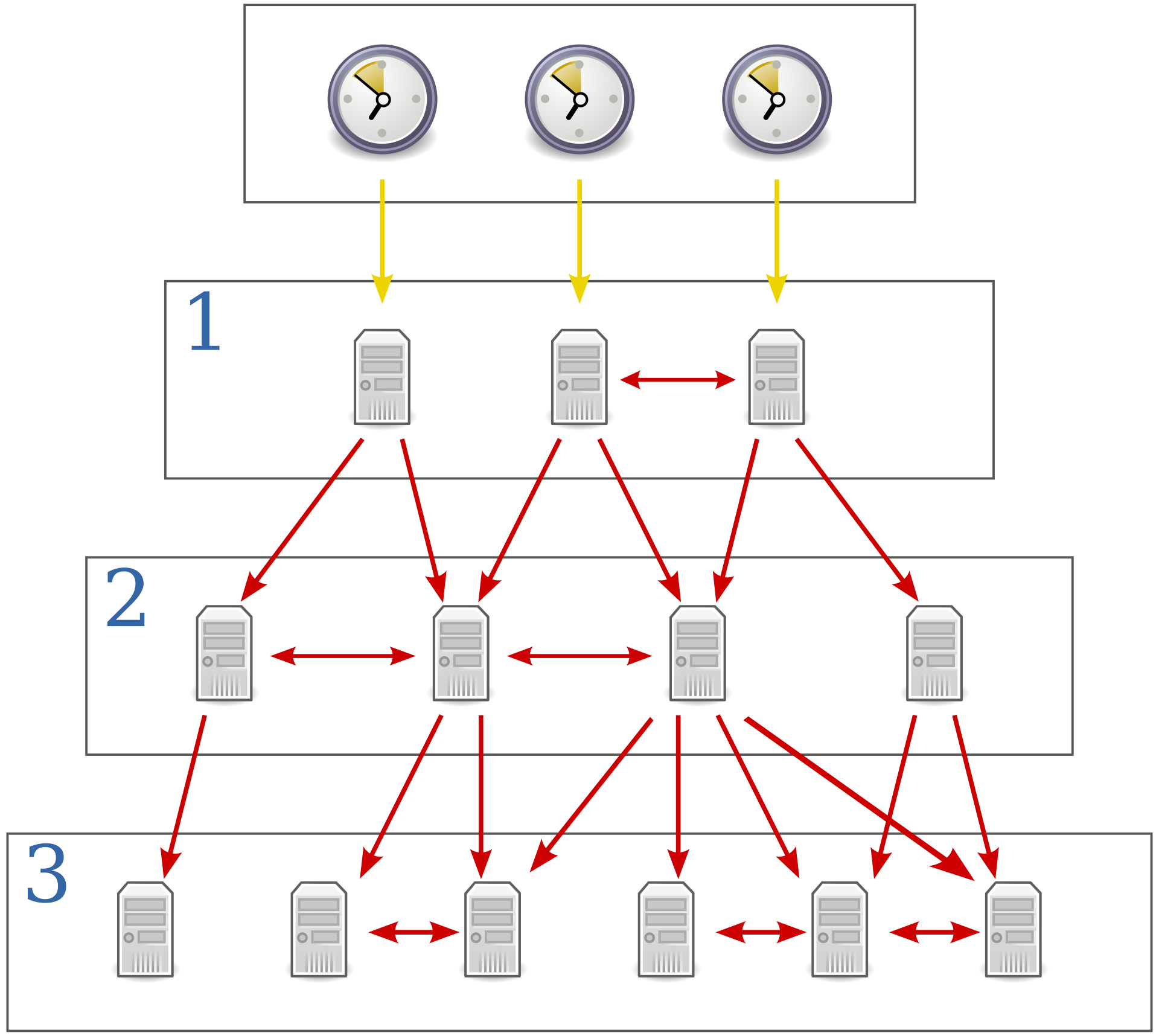

By Benjamin D. Esham (bdesham) - This vector image was created with Inkscape by v ., Public Domain, https://commons.wikimedia.org/w/index.php?curid=2815097
deid@32gig:~/Desktop$ host pool.ntp.org pool.ntp.org has address 54.39.196.172 pool.ntp.org has address 172.97.221.33 pool.ntp.org has address 23.133.168.246 pool.ntp.org has address 198.50.127.72 pool.ntp.org mail is handled by 0 .
NTP_DELTA = 2208988800
Convert from a epoch of 1900-01-01 to 1970-01-01 to keep micropython happy. How do I know?: import utime utime.gmtime(0)[0]
Convert from a epoch of 1900-01-01 to 1970-01-01 to keep micropython happy.
How do I know?:
import utime utime.gmtime(0)[0]
From Wikipedia
The 64-bit binary fixed-point timestamps used by NTP consist of a 32-bit part for seconds and a 32-bit part for fractional second, giving a time scale that rolls over every 232 seconds (136 years) and a theoretical resolution of 2−32 seconds (233 picoseconds). NTP uses an epoch of January 1, 1900. Therefore, the first rollover occurs on February 7, 2036.[35][36]
Code: Set the Pi Pico time.
Note if you are using Thonny it will, by default, set the time on the Pico to local time. To get the time from an NTP server and leave it in UTC you will have to turn this off in the Thonny config. Why? Because in the end this will run not connected to Thonny.

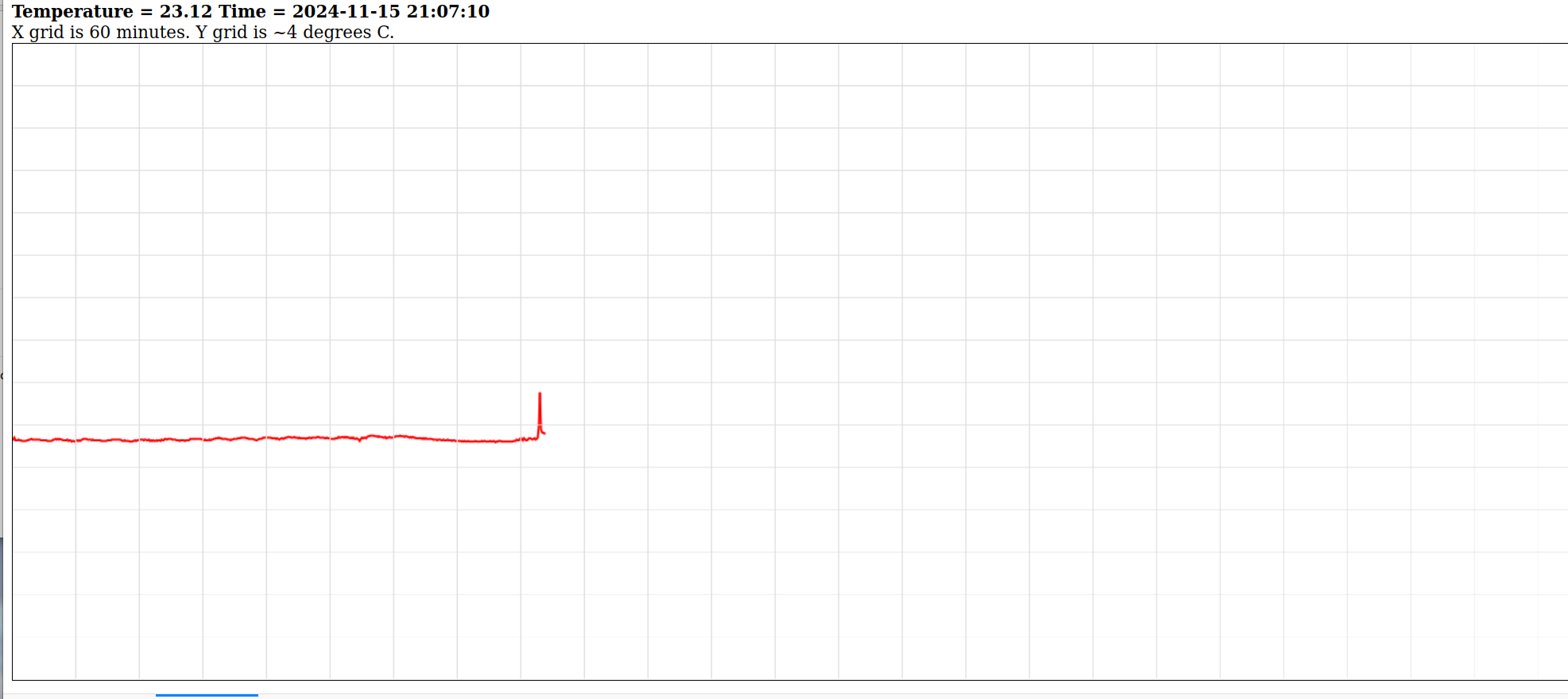

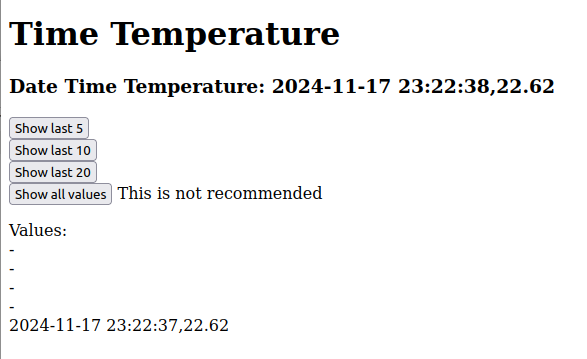

Because waiting for a web server request is a blocking call, the writing of the time and temperature to the SD card is implemented using a timer interrupt. A bonus, the timing is more accurate than it would be using time.sleep calls to delay.
